DC24V Ultra-Safe | 30W Energy Star | 550mm High-Flow Passage

Product Categories
Shenzhen Door Intelligent Control Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

DC24V Ultra-Safe | 30W Energy Star | 550mm High-Flow Passage

  • 1
  • 2
  • 3

Brand Name : DOOR or OEM

Model Number : WD.TD.6380X-EN

Certification : CE / IS09001

Place of Origin : China

MOQ : 1 Unit

Price : Negotiable

Payment Terms : T/T

Supply Ability : 2500 sets per month

Delivery Time : 5-7 working days

Packaging Details : wood carton

Material : 304 Stainless Steel

Turnstile Material : SUS304 Stainless

Communication Interface : RS232

Swing arm available : Acrylics Or Tempered Glass

Opening Signal Input : Dry Contact

Working environment : -15℃-60℃

Pass speed : 20 personal/min

Support System : Face Recognition,ic/id Card,fingerprint

Passage Width : 600mm (MAX)

IP Rating : IP55

Mean Cycles Between Failure : 20 million times

Voltage : AC110V/AC220V±10% 50-60Hz

Method of position : Motor Driving

Mtbf : 5 Million Times

Size : 1200x280x1000m

Access Means : IC Card; Face Recognition

Contact Now

DC24V Ultra-Safe | 30W Energy Star | 550mm High-Flow Passage
Product Specifications
▍Structural Integrity
  • Armor-Graded SUS304 | Brushed Finish Anti-Vandalism
  • Reinforced Body : 2.0mm Top Cover + 1.5mm Full-Wrap Steel Shell
  • Heavy-Duty Tripod Arm : Ø32mm Stainless Steel Tube
  • Dimensions : 420(L)×330(W)×980(H)mm (Compact Footprint)
▍Performance Engineering
  • HyperFlow Passage :550mm Clear Width | 20+ Persons/Min (30% Faster Than Industry Avg.)
  • Lightning Access : 1s Opening Response | 5ms Motor Activation
  • Extreme Environment Ready : -20℃~60℃ Operation | IP55 Shield (Dust/Jet Water Resistant)
  • Military Durability : 5 Million MCBF | 20-Year Corrosion Resistance
Key Features
  • Seamless Third-Party Integration: Compatible with industry-standard access control devices (IC/ID card readers, QR code scanners, facial recognition terminals, etc.).
  • Emergency Safety: Dedicated fire button interfaces with the system for automatic gate release during emergencies.
  • High-Speed Detection: 8 military-grade infrared sensors with advanced algorithms prevent tailgating, reverse passage, and clamping.
  • Enhanced Safety: Multi-layer anti-pinch design and optional widened lane for luggage/wheelchair access.
  • Seamless Integration: Compatible with RS485, TCP/IP (optional), and dry contact interfaces, works with all major access control systems.
(Note: Recognition systems not included; product provides standardized connection interfaces only)
Applications

Widely used for official or corporate buildings, sectioning off certain areas in University lab access points, industrial buildings or hospital radiology departments.

DC24V Ultra-Safe | 30W Energy Star | 550mm High-Flow Passage

Customization Options
  • Customized logo (Min. order: 2 pieces)
  • Customized packaging (Min. order: 2 pieces)
  • Graphic customization (Min. order: 2 pieces)
Supplier's Customization Ability
  • Minor customization
  • Drawing-based customization
  • Sample-based customization
  • Full customization
DC24V Ultra-Safe | 30W Energy Star | 550mm High-Flow Passage
Shipping Information

Shipping fee and delivery date to be negotiated. Contact supplier for more details.


Product Tags:

304 stainless steel tripod turnstile gate



face recognition turnstile gate



stainless steel turnstile with warranty


Quality DC24V Ultra-Safe | 30W Energy Star | 550mm High-Flow Passage for sale

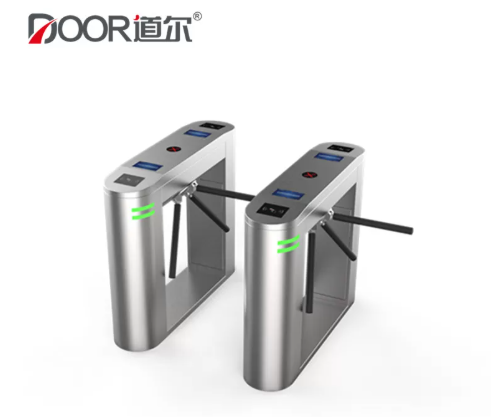

DC24V Ultra-Safe | 30W Energy Star | 550mm High-Flow Passage Images
